The perfect solution for connecting poly to copper

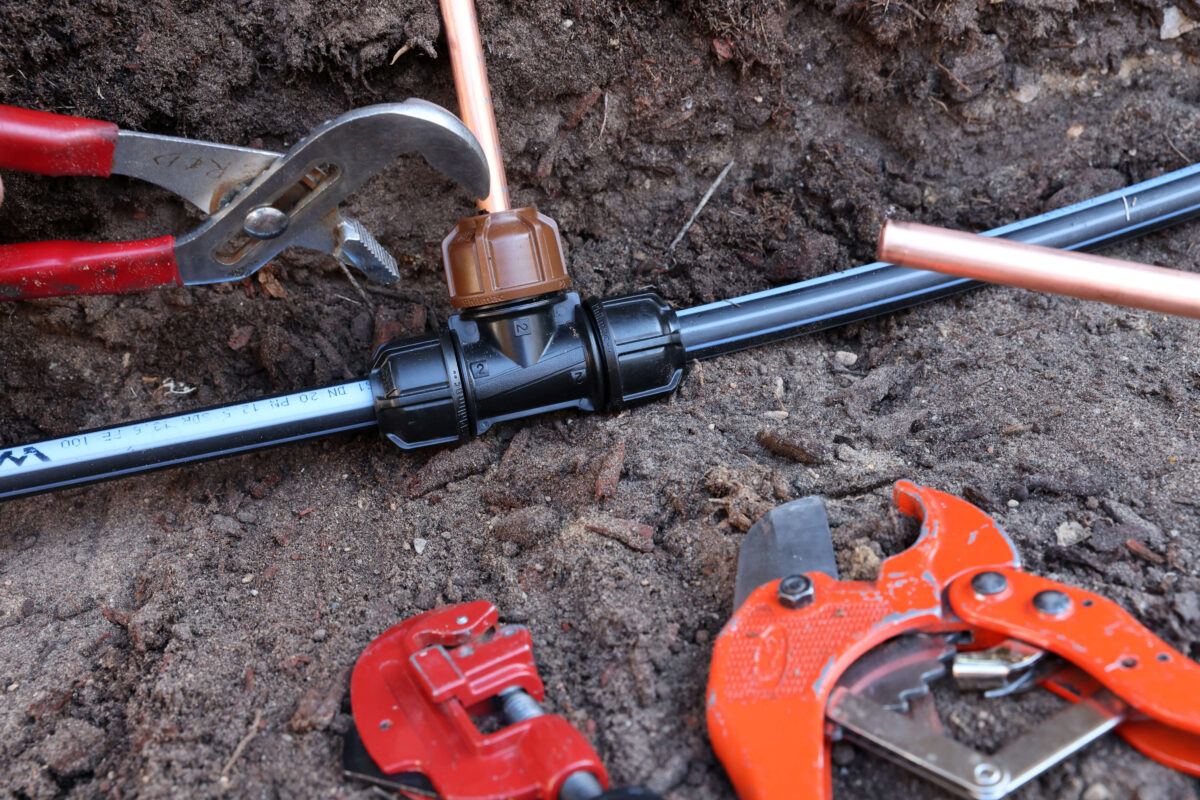

Philmac 3G Metric copper compression fittings are the next generation in poly to copper connections. Designed, engineered and manufactured right here in Australia the Philmac poly to copper fitting provides the answer for connecting poly to copper pipelines. Incorporating all the benefits of the innovative 3G Metric range including the patented slide and tighten technology, installation is now easier and faster than ever.

  • 1

    Slide and Tighten

    Incorporating all the benefits of Slide and Tighten technology - simply slide the pipe into the seal until you hit the stop and then tighten the nut until it butts against the flange of the fitting body.

  • 2

    Visual Stop

    The flange on the body of the fitting acts as a visual cue to indicate when the nut is fully tightened. Once the nut touches the flange on the body, the fitting is in a fully tightened state.

  • 3

    Advanced Materials

    The fitting is manufactured for lightweight, high performance thermoplastic materials with outstanding impact, UV and corrosion resistance. The materials used are non-toxic and taint free.

  • 4

    Stainless Steel Grip Ring

    The grip ring of the copper connection is made from high quality SS316 material to provide maximum resistance to corrosion.

  • 5

    PN16 pressure rating

    The Philmac Poly to copper fitting is rated to PN16 to meet the needs of high pressure pipeline systems.

  • 6

    Compact Size

    The size of the fitting has been kept to a minimum making the fitting ideal to use in compact spaces.

Transition Poly to Copper Product Sizes

COPPER SS GRIP RING

Product Number Size
70602203 20 x 1/2”
70603203 25 x 1/2”
70603303 25 x 3/4”

POLY TO COPPER KIT PE x Cu

Product Number Size
70602100 20 x 1/2”
70603100 25 x 1/2”
70603200 25 x 3/4”

POLY TO COPPER TEE PE x Cu

Product Number Size
70632200 20 x 1/2”
70633200 25 x 1/2”
70633300 25 x 3/4”

POLY TO COPPER ELBOW PE x Cu

Product Number Size
70652200 20 x 1/2”
70653200 25 x 1/2”
70653300 25 x 3/4”

POLY TO COPPER JOINER PE x Cu

Product Number Size
70612100 16 x 1/2”
70612200 20 x 1/2”
70613200 20 x 3/4”
70613100 25 x 1/2”
70613300 25 x 3/4”
70614300 32 x 3/4”
