Simply Slide and Tighten™ for a reliable connection you can trust

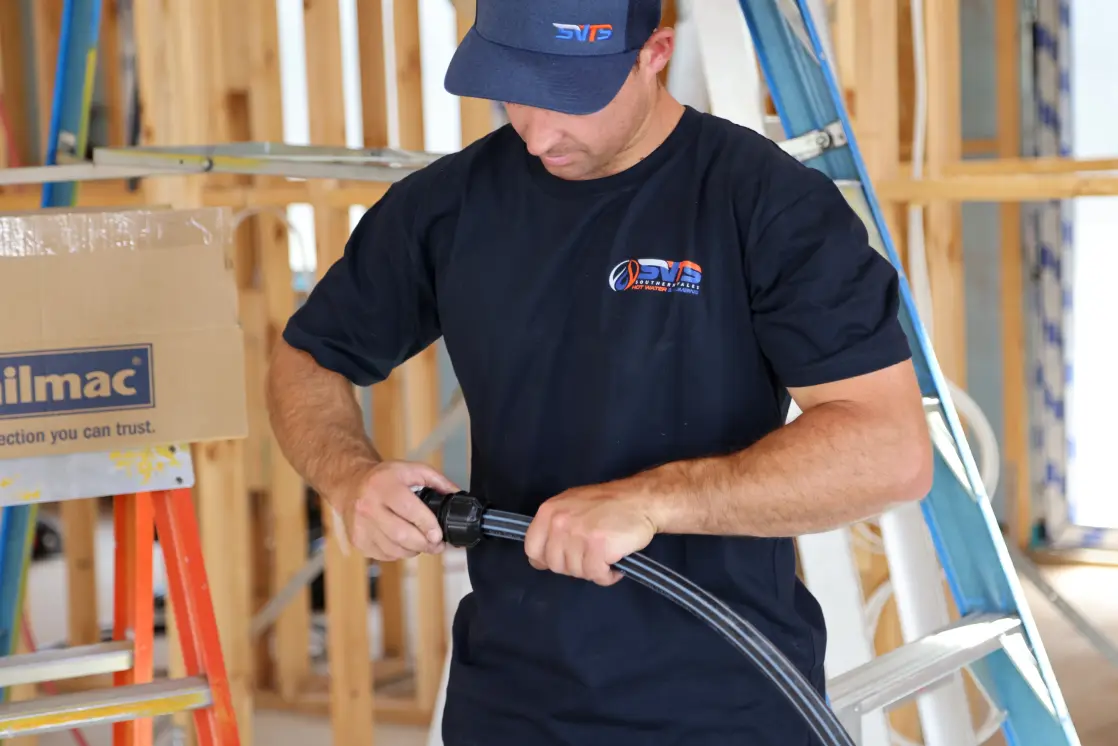

Philmac’s range of Australian made metric compression fittings are the solution for the perfect connection every time thanks to Philmac’s unique Slide and Tighten™ technology. Each fitting is pre-assembled and ready to use so there’s no need to disassemble the fittings or prepare the pipe prior to use. Simply cut the PE pipe square and slide it into the fitting until you feel the first point of resistance and then tighten the nut to the flange on the body of the fitting.

With Philmac’s metric compression fittings, just slide and tighten and the job’s done!

  • 1

    No loose components

    Grip ring and seal remain captive in the body when the nut is removed.

  • 2

    Interchangeability

    Rural, Safelok and Metric components are all interchangeable as they share a common body.

  • 3

    Made from Advanced Materials

    The fitting is manufactured from lightweight, high performance thermoplastic materials with outstanding impact, UV and corrosion resistance. The materials used are non-toxic and taint free.

  • 4

    Slide and Tighten™

    Incorporating all the benefits of Slide and Tighten™ technology with 100% positive feedback.

  • 5

    Disassembly

    The fitting has been designed so the grip ring is released as the nut is backed off, enabling the pipe to be simply pulled out of the fitting.

  • 6

    Compact Size

    The size of Metric fittings has been kept to a minimum making this fitting ideal to use in compact spaces.

  • 7

    Minimal Pipe Twist

    The fitting is designed to minimise pipe twist, reducing the risk of untightening joints.

  • 8

    Visual stop

    The flange on the body of the fitting acts as a visual cue to indicate when the nut is fully tightened. Once the nut touches the flange on the body, the fitting is in a fully tightened state.

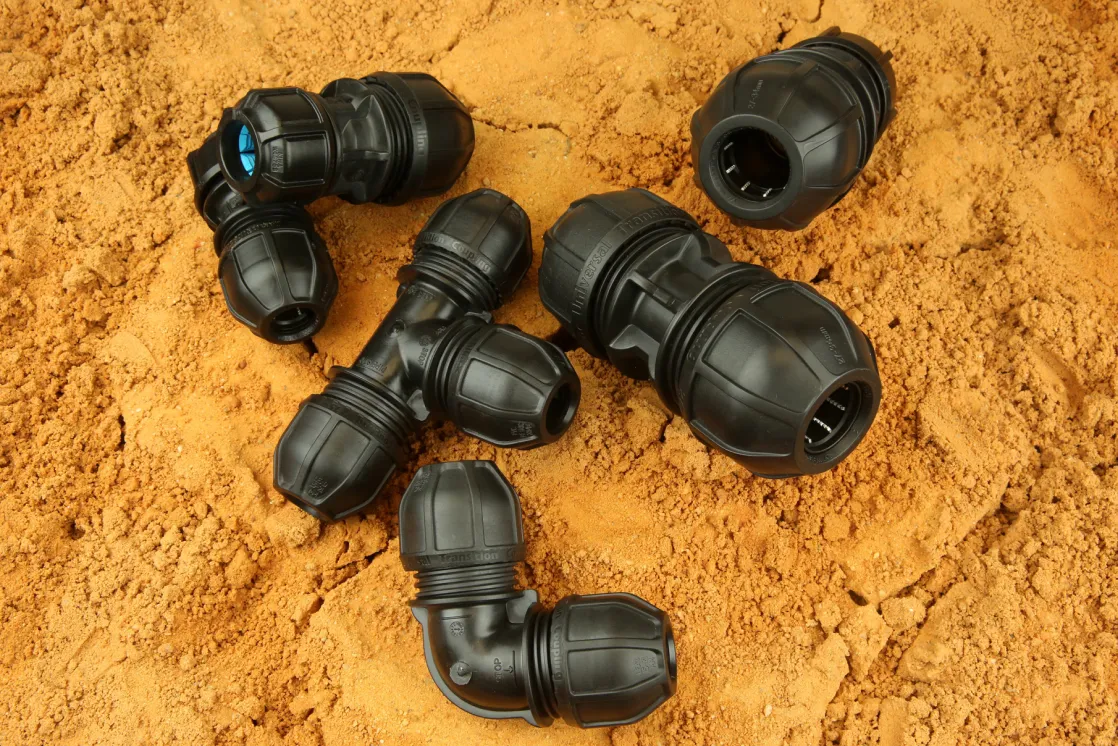

3G Metric Compression Product Sizes

METRIC JOINER Poly x Poly

Product Number Size
70711100 16 x 16
70712200 20 x 20
70713300 25 x 25
70714400 32 x 32
70715500 40 x 40
70716600 50 x 50
70717700 63 x 63

METRIC SLIP JOINER Poly x Poly

Product Number Size
70701220 20 x 20
70701330 25 x 25
70701440 32 x 32
70701550 40 x 40
70701660 50 x 50
70701770 63 x 63
97801770 63 x 63

METRIC REDUCING JOINER Poly x Poly

Product Number Size
70712100 20 x 16
70713100 25 x 16
70713200 25 x 20
70714200 32 x 20
70714300 32 x 25
70715300 40 x 25
70715400 40 x 32
70716300 50 x 25
70716400 50 x 32
70716500 50 x 40
70717400 63 x 32
70717500 63 x 40
70717600 63 x 50

METRIC END CONNECTOR Poly x MI BSP

Product Number Size
70721100 16 x 1/2”
70721200 16 x 3/4”
70722100 20 x 1/2”
70722200 20 x 3/4”
70722300 20 x 1”
70723100 25 x 1/2”
70723200 25 x 3/4”
70723300 25 x 1”
70724200 32 x 3/4”
70724300 32 x 1”
70724400 32 x 1-1/4”
70724500 32 x 1-1/2”
70725300 40 x 1”
70725400 40 x 1-1/4”
70725500 40 x 1-1/2”
70725600 40 x 2”
70726300 50 X 1"
70726400 50 X 1 1/4
70726500 50 x 1-1/2”
70726600 50 x 2”
70727500 63 x 1-1/2”
70727600 63 x 2”

METRIC END CONNECTOR Poly x FI BSP

Product Number Size
70781100 16 x 1/2”
70781200 16 x 3/4”
70782100 20 x 1/2”
70782200 20 x 3/4”
70782300 20 x 1”
70783100 25 x 1/2”
70783200 25 x 3/4”
70783300 25 x 1”
70784200 32 x 3/4”
70784300 32 x 1”
70784400 32 x 1-1/4”
70785300 40 x 1"
70785400 40 x 1-1/4”
70785500 40 x 1-1/2”
70786400 50 x 1 1/4"
70786500 50 x 1-1/2”
70786600 50 x 2”
70787600 63 x 2”

METRIC TEE Poly x Poly x Poly

Product Number Size
70731100 16 x 16 x 16
70732200 20 x 20 X 20
70733300 25 x 25 x 25
70734400 32 x 32 x 32
70735500 40 x 40 x 40
70736600 50 x 50 x 50
70737700 63 x 63 x 63

METRIC SLIP TEE Poly x Poly x Poly

Product Number Size
70703220 20 x 20 x 20
70703330 25 x 25 x 25
70703440 32 x 32 x 32
70703550 40 x 40 x 40
70703660 50 x 50 x 50
70703770 63 x 63 x 63
97803770 63 x 63 x 63

METRIC REDUCING TEE Poly x Poly x Poly

Product Number Size
70733200 25 x 25 x 20
70733400 25 x 25 x 32
70734300 32 x 32 x 25
70735300 40 x 40 x 25
70735400 40 x 40 x 32
70736300 50 x 50 x 25
70736400 50 x 50 x 32
70736500 50 x 50 x 40
70737300 63 x 63 x 25
70737400 63 x 63 x 32
70737600 63 x 63 x 50
97837300 63 x 63 x 25
97837400 63 x 63 x 32
97837600 63 x 63 x 50
97830700 110 x 110 x 63

METRIC TEE Poly x Poly x FI BSP

Product Number Size
70741100 16 x 16 x 1/2”
70742100 20 x 20 x 1/2”
70742200 20 x 20 x 3/4”
70743100 25 x 25 x 1/2”
70743200 25 x 25 x 3/4”
70743300 25 x 25 x 1”
70744200 32 x 32 x 3/4”
70744300 32 x 32 x 1”
70744400 32 x 32 x 1-1/4”
70745300 40 x 40 x 1"
70745400 40 x 40 x 1-1/4”
70745500 40 x 40 x 1-1/2”
70746500 50 x 50 x 1-1/2”
70746600 50 x 50 x 2”
70747400 63 x 63 x 1 1/4
70747500 63 x 63 x 1 1/2
70747600 63 x 63 x 2”

METRIC TEE Poly x Poly x MI BSP

Product Number Size
70793100 25 x 25 x 1/2”
70793200 25 x 25 x 3/4”

METRIC ELBOW Poly x Poly

Product Number Size
70751100 16 x 16
70752200 20 x 20
70753200 25 x 20
70753300 25 x 25
70754400 32 x 32
70755500 40 x 40
70756600 50 x 50
70757700 63 x 63

METRIC ELBOW 45° Poly x Poly

Product Number Size
70702800 20 x 20
70703800 25 x 25
70704800 32 x 32
70705800 40 x 40
70706800 50 x 50
70707800 63 x 63
97807800 63 x 63
97800800 110 X 110

METRIC ELBOW Poly x FI BSP

Product Number Size
70761100 16 x 1/2”
70762100 20 x 1/2”
70762200 20 x 3/4”
70763100 25 x 1/2”
70763200 25 x 3/4”
70763300 25 x 1”
70764200 32 X 3/4"
70764300 32 x 1”
70764400 32 x 1-1/4”
70765300 40 X 1"
70765400 40 x 1-1/4”
70765500 40 x 1-1/2”
70766500 50 x 1-1/2”
70766600 50 x 2”
70767500 63 x 1-1/2”
70767600 63 x 2”

METRIC ELBOW Poly x MI BSP

Product Number Size
70772100 20 x 1/2”
70772200 20 X 3/4"
70773100 25 X 1/2"
70773200 25 x 3/4”
70773300 25 X 1"
70774300 32 x 1”
70774400 32 x 1-1/4”
70775300 40 X 1"
70775400 40 x 1-1/4”
70775500 40 x 1-1/2”
70776500 50 x 1-1/2”
70777600 63 x 2”

METRIC END CAP Poly

Product Number Size
70701900 16
70702900 20
70703900 25
70704900 32
70705900 40
70706900 50
70707900 63

METRIC WALL PLATE ELBOW Poly x FI BSP

Product Number Size
70722900 20 x 1/2”
70723800 25 x 1/2”
70723900 25 x 3/4”
70724900 (Brass) 25 x 3/4”

THREADED WALL PLATE ELBOW FI BSPT x FI BSPP

Product Number Size
90 4239 00 3/4" x 3/4"
90 4239 10 3/4" x 3/4"

METRIC NUT ASSEMBLY (Useful to convert Rural Fittings to Metric)

Product Number Size
70770200 3/4” to 20
70770300 1” to 25
70770400 1-1/4” to 32
70770500 1-1/2” to 40
70770600 2” to 50
70770700 63

Y SPANNER

Product Number Size
90702421 20 - 32 Alloy
90702431 20 - 32 Plastic
90705711 40 - 63 Alloy

METRIC SPANNER (for Philmac Metric Fittings)

Product Number Size
90702400 20 - 32
90704700 32 - 63
90706000 50 - 110

METRIC PIPE CLIP (for metric PE pipe)

Product Number Size
13 4343 05 16
13 4343 06 20
13 4343 07 25
13 4343 08 32
13 4343 09 40
13 4343 10 50
13 4343 11 63
13 4343 12 75
13 4343 13 90
13 4343 14 110
