Philmac EasyLOK

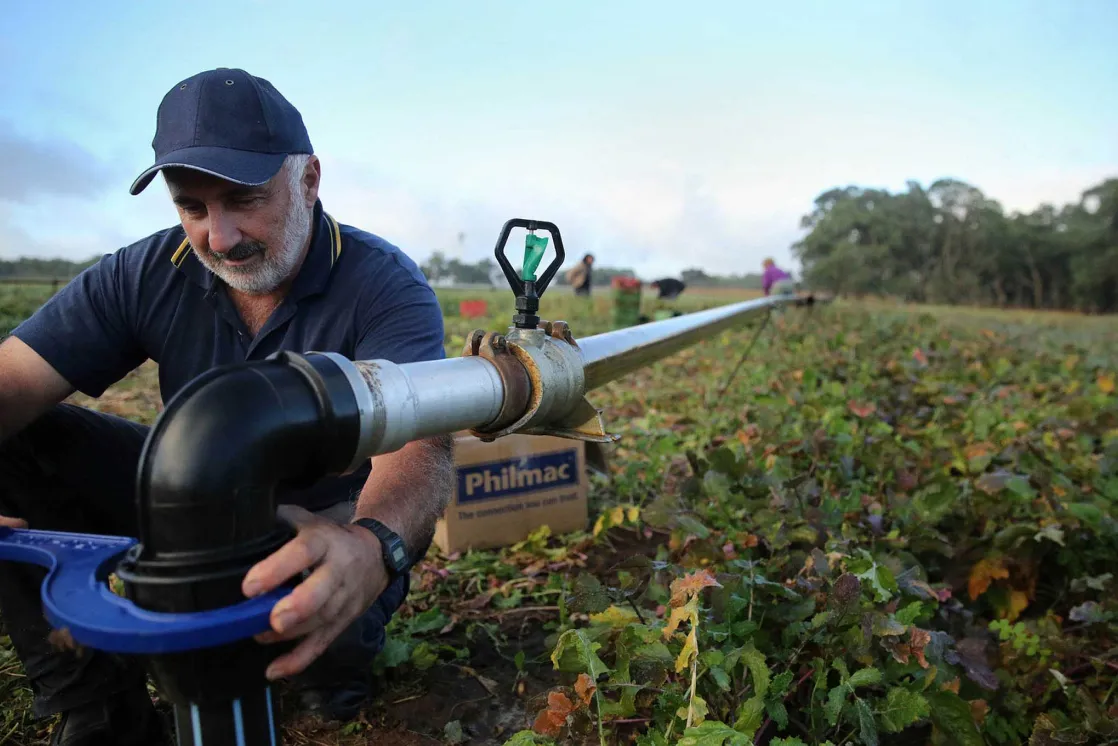

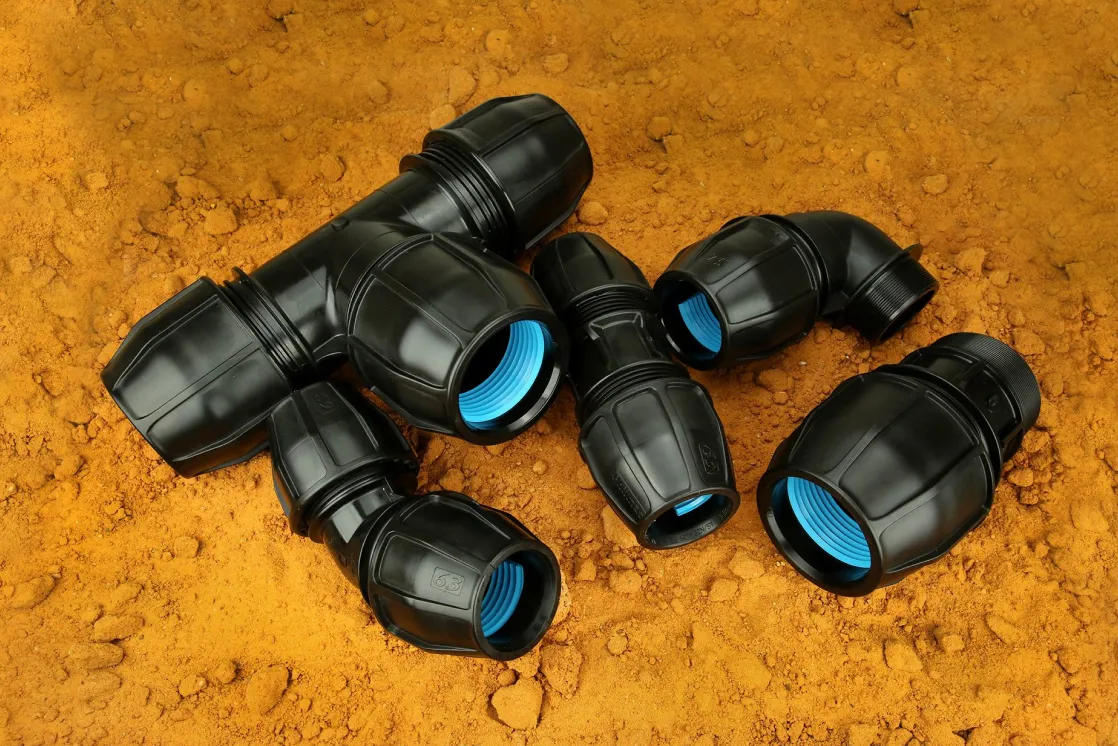

Designed for use in large pipe irrigation, industrial and mining systems using water or air. EasyLOK fittings are designed to ensure installation is as easy as possible and that it works every time. EasyLOK is impact resistant, and can withstand a wide range of chemicals without having to switch components—while maintaining the easy of installation that Philmac’s compression fittings are known for.
X
EASYLOK METRIC JOINER PE x PE
| Product Number | Size |
|---|---|
| 97 6122 20 | 20 x 20 |
| 97 6133 30 | 25 x 25 |
| 97 6144 40 | 32 x 32 |
| 97 6155 50 | 40 x 40 |
| 97 6166 60 | 50 x 50 |
| 97 6177 70 | 63 x 63 |
EASYLOK METRIC REDUCING JOINER PE x PE
| Product Number | Size |
|---|---|
| 97 6121 00 | 20 x 16 |
| 97 6131 00 | 25 x 16 |
| 97 6132 00 | 25 x 20 |
| 97 6142 00 | 32 x 20 |
| 97 6143 00 | 32 x 25 |
| 97 6153 00 | 40 x 25 |
| 97 6154 00 | 40 x 32 |
| 97 6163 00 | 50 x 25 |
| 97 6164 00 | 50 x 32 |
| 97 6165 00 | 50 x 40 |
| 97 6174 00 | 63 x 32 |
| 97 6175 00 | 63 x 40 |
| 97 6176 00 | 63 x 50 |
| 97 6187 00 | 75 x 63 |
| 97 6197 00 | 90 x 63 |
| 97 6198 00 | 90 x 75 |
| 97 6107 00 | 110 X 63 |
| 97 6109 00 | 110 x 90 |
EASYLOK METRIC SLIP JOINER PE x PE
| Product Number | Size (mm) |
|---|---|
| 97 6111 00 | 16 x 16 |
| 97 6122 00 | 20 x 20 |
| 97 6133 00 | 25 x 25 |
| 97 6144 00 | 32 x 32 |
| 97 6155 00 | 40 x 40 |
| 97 6166 00 | 50 x 50 |
| 97 6177 00 | 63 x 63 |
| 97 6188 00 | 75 x 75 |
| 97 6199 00 | 90 x 90 |
| 97 6100 00 | 110 x 110 |
EASYLOK METRIC END CONNECTOR PE x MI BSP
| Product Number | Size |
|---|---|
| 97 6211 00 | 16 x 1/2″ |
| 97 6212 00 | 16 x 3/4″ |
| 97 6221 00 | 20 x 1/2″ |
| 97 6222 00 | 20 x 3/4″ |
| 97 6223 00 | 20 x 1″ |
| 97 623100 | 25 x 1/2″ |
| 97 6232 00 | 25 x 3/4″ |
| 97 6233 00 | 25 x 1″ |
| 97 6242 00 | 32 x 3/4″ |
| 97 6243 00 | 32 x 1″ |
| 97 6244 00 | 32 x 1-1/4″ |
| 97 6245 00 | 32 x 1-1/2″ |
| 97 6253 00 | 40 x 1″ |
| 97 6254 00 | 40 x 1-1/4″ |
| 97 6255 00 | 40 x 1-1/2″ |
| 97 6256 00 | 40 x 2″ |
| 97 6263 00 | 50 X 1″ |
| 97 6264 00 | 50 X 1-1/4″ |
| 97 6265 00 | 50 x 1-1/2” |
| 97 6266 00 | 50 x 2” |
| 97 6275 00 | 63 x 1-1/2” |
| 97 6276 00 | 63 x 2” |
| 97 6277 00 | 63 x 2-1/2” |
| 97 6286 00 | 75 x 2” |
| 97 6287 00 | 75 x 2-1/2″ |
| 97 6288 00 | 75 x 3” |
| 97 6296 00 | 90 x 2″ |
| 97 6298 00 | 90 x 3” |
| 97 6299 00 | 90 x 4″ |
| 97 6206 00 | 110 x 2″ |
| 97 6208 00 | 110 x 3″ |
| 97 6209 00 | 110 x 4” |
EASYLOK METRIC END CONNECTOR PE x FI BSP
| Product Number | Size |
|---|---|
| 97 6811 00 | 16 x 1/2” |
| 97 6812 00 | 16 x 3/4” |
| 97 6821 00 | 20 x 1/2” |
| 97 6822 00 | 20 x 3/4” |
| 97 6823 00 | 20 x 1” |
| 97 6831 00 | 25 x 1/2” |
| 97 6832 00 | 25 x 3/4″ |
| 97 6833 00 | 25 x 1″ |
| 97 6842 00 | 32 x 3/4″ |
| 97 6843 00 | 32 x 1″ |
| 97 6844 00 | 32 x 1-1/4″ |
| 97 6853 00 | 40 x 1″ |
| 97 6854 00 | 40 x 1-1/4″ |
| 97 6855 00 | 40 x 1-1/2″ |
| 97 6864 00 | 50 x 1-1/4” |
| 97 6865 00 | 50 x 1-1/2” |
| 97 6866 00 | 50 x 2” |
| 97 6876 00 | 63 x 2” |
| 97 6886 00 | 75 x 2” |
| 97 6887 00 | 75 x 2-1/2” |
| 97 6896 00 | 90 x 2” |
| 97 6898 00 | 90 x 3” |
| 97 6808 00 | 110 x 3” |
| 97 6809 00 | 110 x 4” |
EASYLOK METRIC REDUCING TEE PE x PE x PE
| Product Number | Size |
|---|---|
| 97 6332 00 | 25 x 25 x 20 |
| 97 6334 00 | 25 x 25 x 32 |
| 97 6343 00 | 32 x 32 x 25 |
| 97 6353 00 | 40 x 40 x 25 |
| 97 6354 00 | 40 x 40 x 32 |
| 97 6363 00 | 50 x 50 x 25 |
| 97 6364 00 | 50 x 50 x 32 |
| 97 6365 00 | 50 x 50 x 40 |
| 97 6373 00 | 63 x 63 x 25 |
| 97 6374 00 | 63 x 63 x 32 |
| 97 6376 00 | 63 x 63 x 50 |
| 97 6307 00 | 110 x 110 x 63 |
EASYLOK METRIC SHOULDERED ADAPTOR
| Product Number | Size |
|---|---|
| 97 6166 20 | 50 x 2” |
| 97 6176 20 | 63 x 2” |
| 97 6199 10 | 90 x 4” |
| 97 6109 10 | 110 x 4” |
EASYLOK METRIC SLIP TEE PE x PE
| Product Number | Size (mm) |
|---|---|
| 97 6366 00 | 16 x 16 x 16 |
| 97 6377 00 | 20 x 20 x 20 |
| 97 6388 00 | 25 x 25 x 25 |
| 97 6399 00 | 32 x 32 x 32 |
| 97 6300 00 | 40 x 40 x 40 |
| 97 6366 00 | 50 x 50 x 50 |
| 97 6377 00 | 63 x 63 x 63 |
| 97 6388 00 | 75 x 75 x 75 |
| 97 6399 00 | 90 x 90 x 90 |
| 97 6300 00 | 110 x 110 x 110 |
EASYLOK METRIC TEE PE x PE x PE
| Product Number | Size (mm) |
|---|---|
| 97 6366 00 | 16 x 16 x 16 |
| 97 6377 00 | 20 x 20 x 20 |
| 97 6388 00 | 25 x 25 x 25 |
| 97 6399 00 | 32 x 32 x 32 |
| 97 6300 00 | 40 x 40 x 40 |
| 97 6366 00 | 50 x 50 x 50 |
| 97 6377 00 | 63 x 63 x 63 |
| 97 6388 00 | 75 x 75 x 75 |
| 97 6399 00 | 90 x 90 x 90 |
| 97 6300 00 | 110 x 110 x 110 |
EASYLOK METRIC ELBOW PE x PE
| Product Number | Size (mm) |
|---|---|
| 97 6511 00 | 16 x 16 |
| 97 6522 00 | 20 x 20 |
| 97 6532 00 | 25 x 20 |
| 97 6533 00 | 25 x 25 |
| 97 6544 00 | 32 x 32 |
| 97 6555 00 | 40 x 40 |
| 97 6566 00 | 50 x 50 |
| 97 6577 00 | 63 x 63 |
| 97 6588 00 | 75 x 75 |
| 97 6599 00 | 90 x 90 |
| 97 6500 00 | 110 x 110 |
EASYLOK METRIC ELBOW 45° PE x PE
| Product Number | Size (mm) |
|---|---|
| 97 6028 00 | 20 x 20 |
| 97 6038 00 | 25 x 25 |
| 97 6048 00 | 32 x 32 |
| 97 6058 00 | 40 x 40 |
| 97 6068 00 | 50 x 50 |
| 97 6078 00 | 63 x 63 |
| 97 6008 00 | 110 x 110 |
EASYLOK METRIC MALE ELBOW PE x MI BSP
| Product Number | Size (mm) |
|---|---|
| 97 6721 00 | 20 x 1/2″ |
| 97 6722 00 | 20 x 3/4″ |
| 97 6731 00 | 25 x 1/2″ |
| 97 6732 00 | 25 x 3/4″ |
| 97 6733 00 | 25 x 1″ |
| 97 6743 00 | 32 x 1″ |
| 97 6744 00 | 32 x 1-1/4″ |
| 97 6753 00 | 40 x 1″ |
| 97 6754 00 | 40 x 1-1/4″ |
| 97 6755 00 | 40 x 1-1/2″ |
| 97 6765 00 | 50 x 1-1/2” |
| 97 6776 00 | 63 x 2” |
| 97 6788 00 | 75 x 3″ |
EASYLOK METRIC MALE TEE PE x PE x MI BSP
| Product Number | Size |
|---|---|
| 97 6931 00 | 25 x 25 x 1/2″ |
| 97 6932 00 | 25 x 25 x 3/4″ |
EASYLOK METRIC FEMALE TEE PE x PE x FI BSP
| Product Number | Size (mm) |
|---|---|
| 97 6411 00 | 16 x 16 x 1/2″ |
| 97 6421 00 | 20 x 20 x 1/2″ |
| 97 6422 00 | 20 x 20 x 3/4″ |
| 97 6431 00 | 25 x 25 x 1/2″ |
| 97 6432 00 | 25 x 25 x 3/4″ |
| 97 6433 00 | 25 x 25 x 1″ |
| 97 6442 00 | 32 x 32 x 3/4″ |
| 97 6443 00 | 32 x 32 x 1″ |
| 97 6444 00 | 32 x 32 x 1-1/4″ |
| 97 6453 00 | 40 x 40 x 1″ |
| 97 6454 00 | 40 x 40 x 1-1/4″ |
| 97 6455 00 | 40 x 40 x 1-1/2″ |
| 97 6465 00 | 50 x 50 x 1-1/2” |
| 97 6466 00 | 50 x 50 x 2” |
| 97 6474 00 | 63 x 63 x 1-1/4” |
| 97 6475 00 | 63 x 63 x 1-1/2” |
| 97 6476 00 | 63 x 63 x 2” |
| 97 6486 00 | 75 x 75 x 2” |
| 97 6487 00 | 75 x 75 x 2-1/2” |
| 97 6488 00 | 75 x 75 x 3” |
| 97 6498 00 | 90 x 90 x 3” |
| 97 6409 00 | 110 x 110 x 4” |
EASYLOK METRIC FEMALE ELBOW PE x FI BSP
| Product Number | Size (mm) |
|---|---|
| 97 6611 00 | 16 x 1/2” |
| 97 6621 00 | 20 x 1/2” |
| 97 6622 00 | 20 x 3/4” |
| 97 6631 00 | 25 x 1/2” |
| 97 6632 00 | 25 x 3/4” |
| 97 6633 00 | 25 x 1” |
| 97 6642 00 | 32 x 3/4” |
| 97 6643 00 | 32 x 1” |
| 97 6644 00 | 32 x 1-1/4” |
| 97 6653 00 | 40 x 1″ |
| 97 6654 00 | 40 x 1-1/4″ |
| 97 6655 00 | 40 x 1-1/2″ |
| 97 6665 00 | 50 x 1-1/2” |
| 97 6666 00 | 50 x 2” |
| 97 6675 00 | 63 x 1-1/2” |
| 97 6676 00 | 63 x 2” |
| 97 6686 00 | 75 x 2” |
| 97 6687 00 | 75 x 2-1/2” |
| 97 6688 00 | 75 x 3” |
| 97 6698 00 | 90 x 3” |
| 97 6609 00 | 110 x 4” |
EASYLOK METRIC FLANGED ADAPTOR POLY – FLANGE (AS2129 Table E)*
| Product Number | Size (mm) |
|---|---|
| 97 6966 00 | 50 x 2” |
| 97 6976 00 | 63 x 2” |
| 97 6979 00 | 63 x 4” |
| 97 6988 00 | 75 x 3” |
| 97 6998 00 | 90 x 3” |
| 97 6909 00 | 110 x 4” |
EASYLOK BACKING RING GALVANISED (AS2129 Table E)
| Product Number | Size |
|---|---|
| 99 8766 10 | 50 x 2” |
| 99 8776 10 | 63 x 2” |
| 99 8788 10 | 75/90 x 3” |
| 99 8709 10 | 110 x 4” |
EASYLOK BACKING RING GALVANISED ISO
| Product Number | Size |
|---|---|
| 99 8777 10 | 63 x 2” |
O-RING
| Product Number | Size |
|---|---|
| 40 7122 15 | 20 |
| 40 7133 15 | 25 |
| 40 7144 15 | 32 |
| 40 7155 15 | 40 |
| 40 7166 15 | 50 |
| 40 7177 15 | 63 |
| 40 7188 15 | 75 |
| 40 7199 15 | 90 |
| 40 7100 15 | 110 |
SPACER
| Product Number | Size |
|---|---|
| 40 7122 94 | 20 |
| 40 7133 94 | 25 |
| 40 7144 94 | 32 |
| 40 7155 94 | 40 |
| 40 7166 94 | 50 |
| 40 7177 94 | 63 |
| 40 7188 94 | 75 |
| 40 7199 94 | 90 |
| 40 7100 94 | 110 |
COLLET
| Product Number | Size |
|---|---|
| 40 7122 56 | 20 |
| 40 7133 56 | 25 |
| 40 7144 56 | 32 |
| 40 7155 56 | 40 |
| 40 7166 56 | 50 |
| 40 7177 56 | 63 |
| 40 7188 56 | 75 |
| 40 7199 56 | 90 |
| 40 7100 56 | 110 |
EASYLOK METRIC NUT
| Product Number | Size |
|---|---|
| 47 6702 00 | 20 |
| 47 6703 00 | 25 |
| 47 6704 00 | 32 |
| 47 6705 00 | 40 |
| 47 6706 00 | 50 |
| 47 6707 00 | 63 |
| 47 6708 00 | 75 |
| 47 6709 00 | 90 |
| 47 6700 00 | 110 |

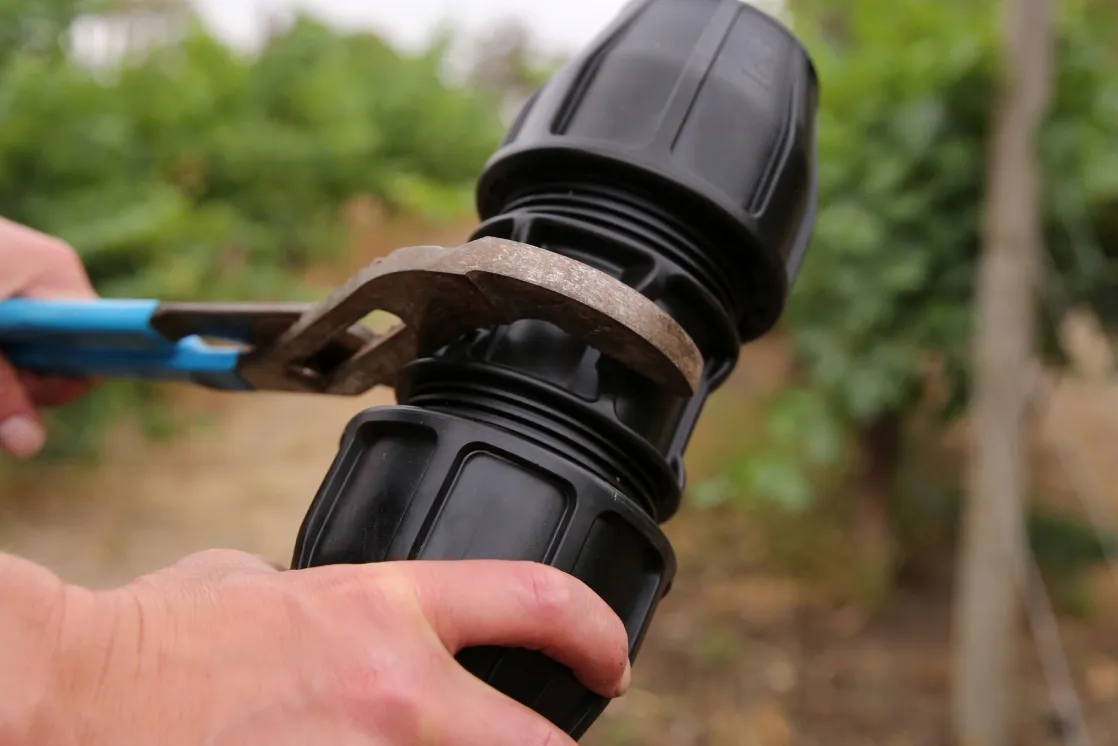

How to Install a Philmac EasyLok
Overview / Why Choose This Product
Philmac EasyLOC® fittings are designed for quick, reliable connections in layflat hose systems, making them ideal for irrigation, water transfer, and pump setups. With a simple hand-tight assembly and no special tools required, EasyLOC® fittings save time while delivering a strong, leak-free seal. Built tough for Australian conditions, they resist UV and corrosion for long-term performance in demanding environments.
Key Features
Fast, tool-free assembly – hand-tighten for a secure connection
Leak-free performance – engineered seal for consistent water flow
Layflat hose compatibility – purpose-built for irrigation and water transfer systems
UV and corrosion resistant – ideal for outdoor and agricultural use
Applications & Benefits
Applications
- Irrigation systems using layflat hose
- Pump and water transfer setups
- Temporary or seasonal water distribution
- Broadacre and horticultural watering
Benefits
- Quick installation – saves time and labour
- Reliable seal – reduces leaks and downtime
- Durable design – withstands UV exposure and tough handling
Technical Specifications
Size Range: Typically 1″ – 4″
Pressure Rating: Up to PN10
Material: High-grade UV-stabilised polypropylene
Installation Guide
- Cut layflat hose square and ensure the end is clean.
- Insert hose fully into the fitting body.
- Hand-tighten the nut until secure. No special tools required.
- Pressurise and test the system before use.
For detailed diagrams and torque guidance, view installation guide online.
